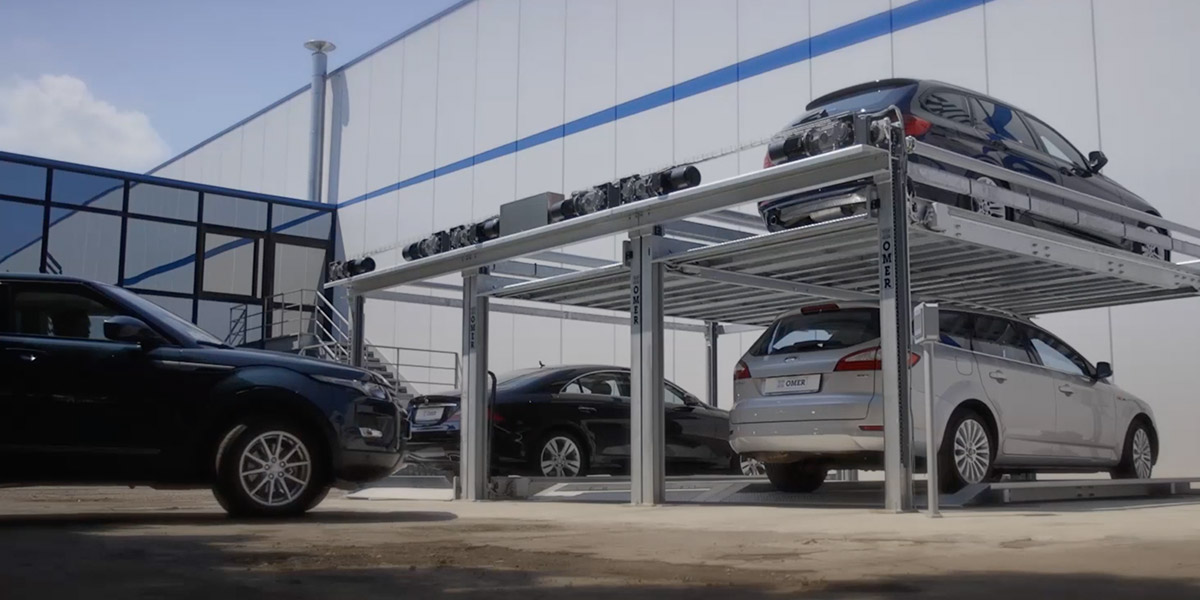

OMER’s Store-Park semi-automatic parking system utilises both vertical and horizontal movement to park and store the maximum number of vehicles across either 2 or 3 levels.
Store-Park’s parking bays are accessed from ground level, each independently from the other. The upper and lower level platforms move vertically, while the ground level platform moves horizontally.
Store-Park features one fewer parking space at ground level than both the upper and lower levels. This space allows the ground level platforms to slide left or right in order to create the free room to either lower the upper platforms, or raise the lower level platforms.
This arrangement means that a unit of three (over 2 levels) or five (over 3 levels) parking bays are the smallest Store-Park systems available.
The Store-Park system can be sized according to your design requirements and fitted with optional add-ons such as car dimension controls.
Models
| Model | Dimensions | Vehicle Type |
|---|---|---|
| CPS Store-Park H1850 | 1.8 (lift height) x 2.2 meters wide | Standard Car |
| CPS Store-Park H2100 | 1.8 (lift height) x 2.2 meters wide | Standard Car |
Specifications
| Description | H1850 | H2100 |
|---|---|---|
| Capacity | 2000 kg | 2005 kg |
| Standard Travel | 1850 mm | 2100 mm |
| Useful Height | 1800 mm | 2050 mm |
| Max.Car Dimensions | 2200 x 5000 mm | 2200 x 5000 mm |
| Clearance between columns () | 2300 mm | 2300 mm |
| Standard Platform into pit | 0 mm | 0 mm |
| Standard lower Platform | 2200 x 3860 mm | 2200 x 3860 mm |
| Standard upper platform | 2200 X 5700 mm | 2200 X 5700 mm |
| Pit | 0 mm | 0 mm |
| Moving power supply | 0,35 kw | 0,35 kw |
| Lifting power supply | 2,2/3,5 kw | 2,2/3,5 kw |
| Ascent / descent time | 30 / 30 s | 34 / 34 s |
| Electricty power | 400 v / 50 hz | 400 v / 50 hz |
| The width of the car must be 100 mm less than the internal column distance | ||
Features
A parking place is selected via a touch screen or remote control, connected to the control panel. As soon as the system receives the code, it automatically moves the platforms in order to position the required platform in front of the selected door.
Parking a vehicle is straightforward. The door is opened, the vehicle positioned on the platform and the door closes. The system is then ready for another operation. Store-Park’s doors can be electrically or remotely opened.
Retrieving a car uses this sequence in reverse, with access via dialled code or remote controller used by the operator. To ensure complete safety for users, the platforms will only move when the doors are locked. Electrical sensors monitor when the door is in the closed position.
Store-Park’s upper, ground and lower level platforms are made of hot dipped galvanised steel, ensuring a smooth, user-friendly platform. Adjustable wheel stops assist drivers to position their car correctly.
The Store-Park structure is completely self-standing, with no structural walls required to support the system. The motor and all cables are placed on the upper beams, making StorePark easier to install and providing lower maintenance costs.
Every module uses torsion bars to ensure the platform constantly rises at an even rate, regardless of where the weight is positioned on the platforms.
Every upper platform has an additional mechanical safety lock. In the event of chain failure, this mechanical lock will immediately activate to hook onto the column rack.
Store-Park’s gates are manufactured from anodised aluminium to ensure light weight, long life, and quiet movement.
Video
We Provide a Complete Semi-Automated Parking System Service
Every year, more people are acquiring vehicles, contributing to road traffic. This highlights the need for additional space to accommodate new drivers. The situation is worse with parking garages since space is at a premium, with businesses embracing new technology in the form of a semi-automated parking system. If you’re keen on the idea but wondering where to begin, the team at Cloud Parking Solutions is here to assist. We are changing how the world parks and believe it’s time for you to meet the future of parking - an automated parking system.
Benefits of an Automatic Car Parking System
While the increase in car ownership has benefited the automotive industry worldwide, building developers view it as a dilemma. You have the responsibility of creating ample parking facilities with tight budgets and limited building footprints, especially in congested cities. If you’re struggling to deal with the number of vehicles coming through your building, perhaps it’s time to consider an auto parking system. You’ll discover several advantages with this modern development over traditional parking garages.
A typical parking garage must accommodate traffic flow in both directions and allow vehicles to back out of a parking space. You don’t require circulation space with an auto parking system as the machine does the work for you. Adopting this approach is beneficial when you have limited construction space as the facility requires 60 percent less building volume and 40 percent less area than traditional garages.
This new parking garage is easier to install and doesn’t require excavation or high construction costs. Additionally, you save on other operational expenses such as valet operators, higher insurance premiums, and HR staff since you don’t require them in an automated parking system.
If you’ve driven through a public parking garage, you’ve experienced the hassle of searching for a free spot. Driving up and down various levels to park a car isn’t helping the environment. Imagine how many vehicles follow the same routine, and while the engine is running, exhaust emissions are polluting the air, which is a contributor to climate change. The automated system doesn’t require an active vehicle to shift it around during the storage or retrieval process.
What to Expect from Cloud Parking Solutions Regarding an Automatic Car Parking System
Our automated parking solutions have eased the burden on building managers in highly congested cities around the world. We can assist you with consultancy, specification, design and build services for your project.
We pride ourselves on quick installation, and since we use lightweight materials without foundational requirements, we can erect the car park between 30 to 90 days, depending on the size. We can install the bolted steel structures in stages, including dismantling and transferring the system to another site.
There’s no one-size-fits-all solution for parking garages as the size and area of the building dictates how much space you can use for parking. For this reason, we can offer bespoke car lift solutions to meet complex challenges.
Storing a vehicle in our car park system allows the user to drop off and retrieve their cars from the ground floor, which means no more stairs. Additionally, we use a proper authorisation process such as PIN codes, magnetic key, or mobile app to both park and collect a vehicle to enhance the safety of the system.
