Ideal for outdoor installations such as in gardens or tight access front and rear yards.

Duplo allows you to double up areas as parking spaces or hide vehicles completely underground, keeping the residential space free of clutter.

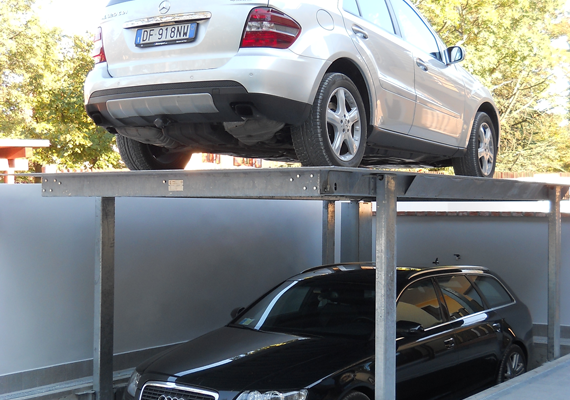

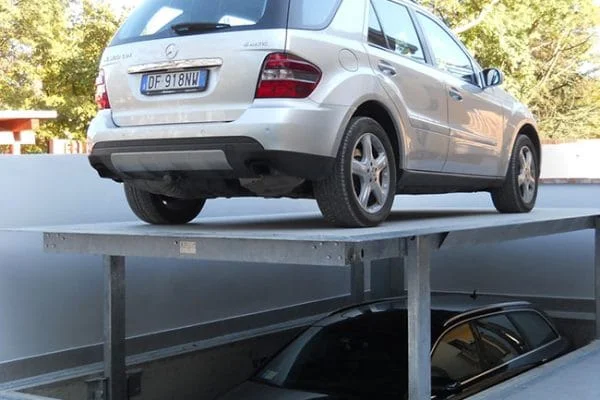

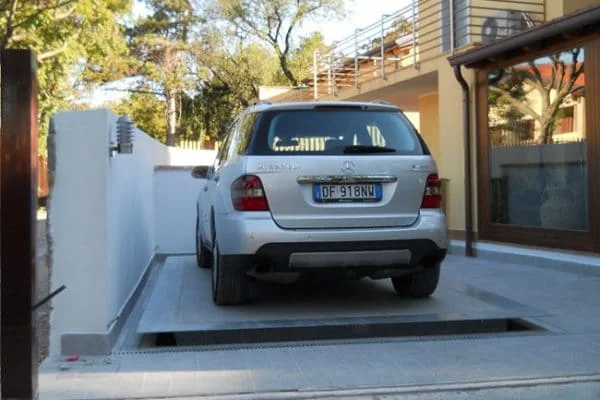

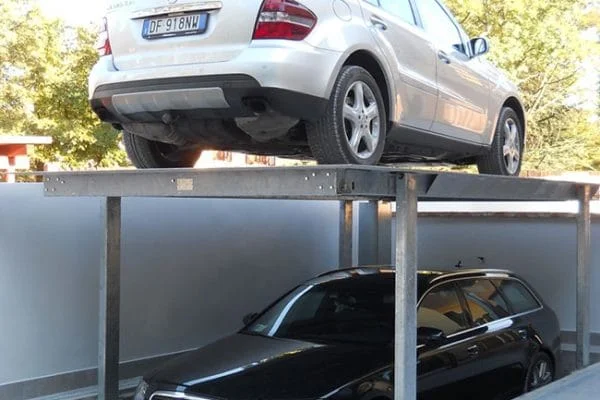

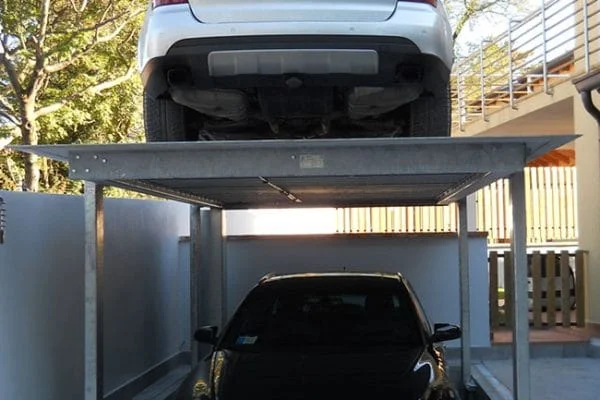

The Duplo range of underground parking places allow two vehicles to be parked in a space that would usually fit only one. While one vehicle is parked in the pit on the lower platform, another can be parked on the roof when the Duplo is submerged. The roof can blend in with the surrounding area, leaving the lower car safely and discretely parked.

The Duplo range features three models: Duplo 30, Duplo 25 and Duplo 20. For durability, all Duplo models feature full galvanization of the parking platforms and roof.

Models

Model Dimensions Vehicle Type
CPS-Duplo 20-2 T 2.5 (lift height) x 5.2 meters wide Standard Car
CPS-Duplo 25-2 T 2.5 (lift height) x 5.3 meters wide SUV
CPS-Duplo 30-T 2.5 (lift height) x 5.4 meters wide SUV

Specifications

Description Duplo 30 Duplo 25 Duplo 20
Capacity 3,000kg 2,500 + 2,500 kg 2,000 + 2,000 kg
Standard Lifting Height 2,190 mm 2,190 mm 2,190 mm
Max Lifting Height 2,190 mm 2,190 mm 2,190 mm
Minimum Platform 2200x5200 mm 2200x5200 mm 2200x5200 mm
Standard Platform 2500x5200 mm 2500x5200 mm 2500x5200 mm
Max Platform 2700x5200 mm 2700x5200 mm 2700x5200 mm
Platform Distance 2,010 mm 2,100 mm 2,010 mm
Pit 2,500 mm 2,500 mm 2,500 mm
Power 2.6 kw 2.6 kw 2.6 kw
Speed 0.03 m/s 0.03 m/s 0.03 m/s
Power supply 400 v / 50 hz 400 v / 50 hz 400 v / 50 hz
Standard Weight 2,850 kg 2,850 kg 2,850 kg
Notes Tiles on the roof up to 70 kg/m2 Two platforms for two cars Platform + tiles on the roof up to 70 kg/m2

Features

Ideal for outdoor installation such as in gardens or garage access zones, Duplo can double up parking spaces or hide vehicles completely underground. It’s the perfect way to keep a residential space free of clutter.

The Duplo platform can accommodate full size vehicles or long wheel base vehicles. The Duplo range is all about making parking easy.

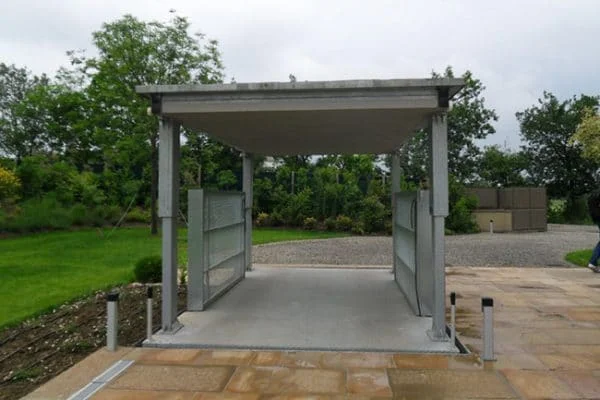

Duplo’s roof has an access hatch to allow easy inspection, maintenance, control, and emergency access – even while the parking unit is closed.

Duplo uses two torsion bars, one for each pair of columns, located on the short sides. This torsion bar system equalises the chains and ensures perfect alignment of the machine, preventing any tilting of the vehicle during movement.

The chain system is doubled along each long side of the Duplo unit, engaging completely around the notched torsion bar pinion. By keeping the chains under tension, the system cannot tilt.

The innovative chain system makes Duplo perfectly safe against any problems that could affect stability.

Duplo’s electromagnetic rack connection block sets the unit in safety mode at any height.

Thanks to the column chain system, vehicles positioned on the Duplo platforms are always absolutely safe.
